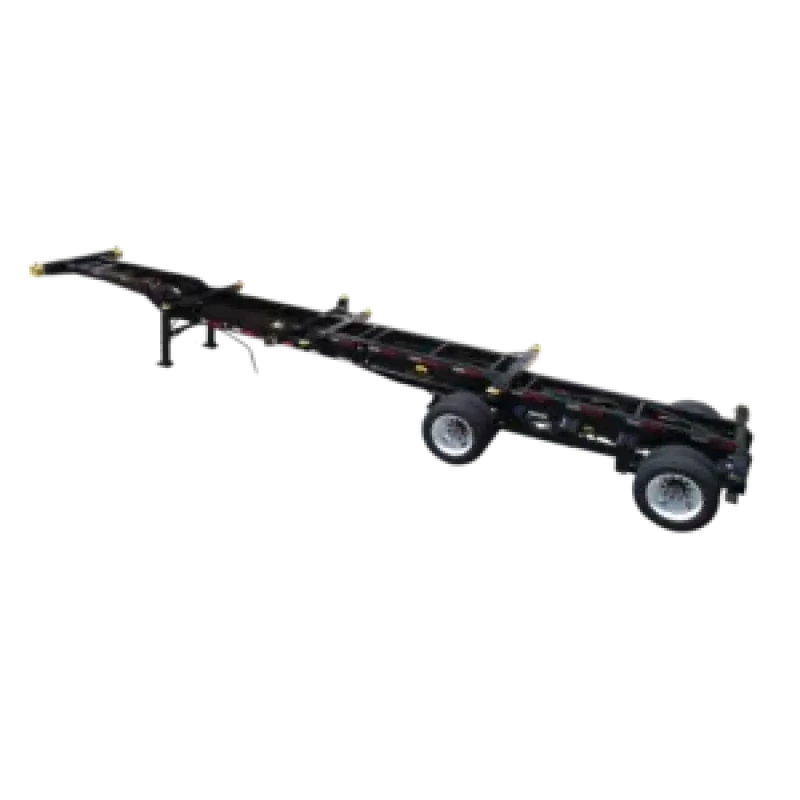

20/40’ Slider 12 pins Tandem

This chassis is designed to carry one ISO 20’ or 2 x 20’ empties or 40’ ISO containers This chassis meets all DOT, AAR, ANSI, TOFC, FMVSS, SAE and TTMA specifications.

Description

OVERALL LENGTH : 36’ 10 15/16” retracted or 45’ 6 3/16” extended OVERALL WIDTH : 96” (over tire 102”) FIFTH WHEEL HEIGHT : 47 ± 1”
MAX REAR HEIGHT : 48 ± 1” KINGPIN LOCATION : 24” (From rear face of front bolster) LANDING GEAR LOCATION : 94.5” (From centerline of kingpin)
TRIDEM LOCATION: 25 7/8” (From rear face of rear bolster) AXLE SPREAD : 61” + 61”
TARE WEIGHT : 10,210 lbs. ± 2% PAYLOAD: 49,400 lbs in 20’ position : 67,200 lbs in 40’ or 45’ position
