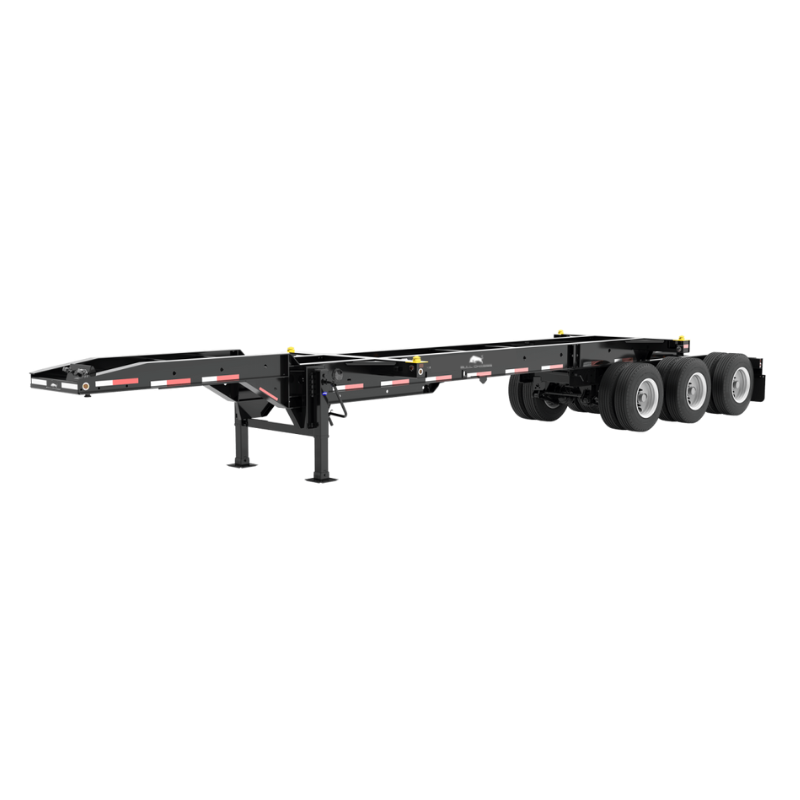

33’ slider Tri-axle Container Chassis
This chassis is designed for transporting a 20-foot ISO container.
This chassis meets all DOT, AAR, ANSI, TOFC, FMVSS, SAE, and TTMA specifications.
Description
| Overall Length: | 33’ (retracted) or 41’ (extended) |
| Overall Width: | 96” |
| Fifth Wheel Height: | 48 ± 1” |
| Rear Deck Height: | 52 ± 1” |
| Landing gear Location: |
112” (From the kingpin center) |
| Kingpin Location: | 15” |
| Axle Spread: | 54.5” + 54.5” |
| Tandem location: | 16” (From rear face of rear bolster to rear axle center when extended) |
| Tare Weight: | 10,700 lbs ± 2% |
| Payload: | 67,200 lbs |
